Silicone rubber heater

Location：Home > Products > Silicone rubber heater

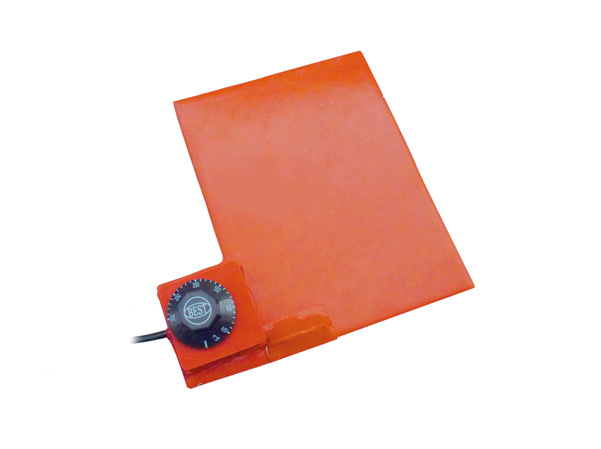

Slicone Rubber Heater

sort：XD-H-01
This product has been viewed
Sort：XD-H-01
Welcome to call us
alirubber.com@163.com

Product Details

Temperature Rating	400°F(204°C)maximum operating
Size/Shape Limitations	Maximum width of 48 inches, no maximum length
Thickness	~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply)
Voltage	Any AC or DC
Wattage	Customer specified(Normal maximum of 5 watts of 5 watts per square inch)
Power lead wire	Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire
Attachment	Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat)
Description	1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility. 2. It can improve heat transfer, accelerate warming and decrease power under the process of operation. 3. They are heating fast and thermal conversion efficiency high.
Features: (1) Heating fast and long time using (2) Flexible and customization (3) Waterproof and non-toxic(Waterproof grad:IP68) *Before purchasing, Please confirm the size first ( Iengthwidethickness)*

Silicone Heater Heating Element

Silicone rubber heater can be made with etched foil heating elements or wire wound heating elements.

a)Etched Foil Silicone Rubber Heaters

The etched element provides superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and longer life. The heaters operate in ambient temperatures from -80°F to 500°F.

etched foil silicone rubber heaters

Advantages over wire wound silicone rubber heaters:

Higher watt densities
Distributed wattages
Elimination of edge loss compensation
Greater element area over heater sheath
Complex heat distribution with a rating of about 200°C (392°F)
Economical mass production
Reproduction of complex circuits

b)Wire Wound Silicone Rubber Heaters

The excellent dielectric properties of silicone rubber and the strength of fiberglass combine to produce a unique heater. First, fine nickel-chromium alloy wire is spiraled onto a center core of fiberglass twine, producing a strong, flexible heating element. Electronically-controlled precision winding equipment ensures consistency.

Circuits are then hand-wound on permanent tooling providing repeatability of resistance and pattern. Parallel circuits are utilized where possible, permitting continued operation should a single circuit be damaged.

When the heating element is positioned, a second layer of silicone rubber is laid over the wire. The layers are then vulcanized to permanently position the circuits.

Using these versatile and flexible heaters, the ability to apply heat exactly where required is limited only by imagination — and a maximum continuous operating temperature of about 200°C
