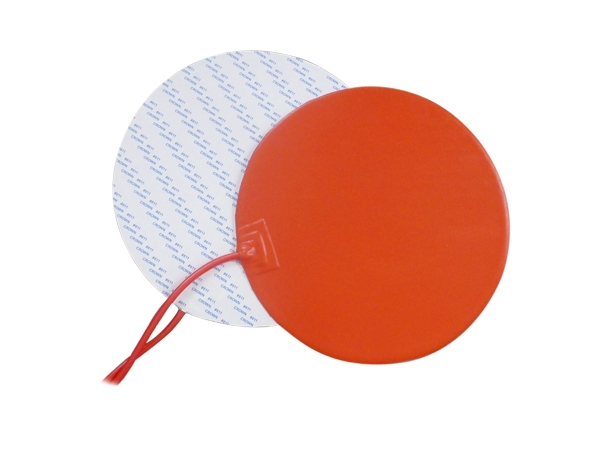

Silicone rubber heater
12v Flexible Silicone Heater
sort：Alixd-H-1This product has been viewed
Sort：Alixd-H-1
Welcome to call us
alirubber.com@163.com
12v Flexible Silicone Heater
Different size of silicone heater bed for 3d printer ,if you can't find suitable size ,please let me know. Also can supply 400x400mm ,500x500mm ,600x600mm big size heater bed .
| Size(mm) | Voltage(V) | Wattage(W) | Accessories |
| 150*150 | 12V | 100W | Adhesive, thermistor |
| 160*160 | 12V | 90W | Adhesive, thermistor |
| 200*200 | 12V/24V | 150W | Adhesive, thermistor |
| 300*300 | 12V/24V | 270W | Adhesive, thermistor |
| 340*370 | 24V | 250W | Adhesive, thermistor |
Silicone Rubber Heater For 3D Printer
| silicone rubber heater | |
Dimension | Dimensions on request | |
Thickness | 1.5mm | |
Heating element | Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core | Nickel-Chromium or a Copper-Nickel resistance wire |
Voltage | Any voltage on request | |
Output | Up to 5KW/M2 | |
Tolerance | ±10% on resistance | |
Max surface temperature | 200°C | |
Min exposure temperature | -60°C | |
Features:
(1) Heating fast and long time span.
(2) Flexible and customization, thinness and lightness
(3) Waterproof and non-toxic, odourless
(4) Easy to use and operate.
(5) High thermal conversion efficiency
(6) Can be stick to the heated (have adhesive)
Applications:
- Freeze protection and condensation prevention for many types of instrumentation and equipment.
- Medical equipment such as blood analyzers and test tube heaters.
- Computer peripherals such as laser printers.
- Curing of plastic laminates.
- Photo processing equipment.
- Semiconductor processing equipment.
- Thermal transfer equipment
- Drums and other vessels and viscosity control and asphalt storage.
3M
Integrated Thermistor Beta Value 3950K
Silicone Drum Heater
Description and volume | Drum heaters:200L | Drum heaters:20L | Drum heaters:200L |
Size | 250*1740*1.5mm | 200*860*1.5mm | 125*1740*1.5mm |
Voltage and power | 220V 2000W | 220V 800W | 220V 1000W |
Temperature Adjustment range | 30~150°C | 30~150°C | 30~150°C |
Diameter | About 590mm | About 300mm | About 590mm |
Weight | 1.8K | 1.2K | 1.3K |
Production Produce:
1.Array nickle alloy wires
2.Testing Resistance
3.Hot-pressing
4.Soldering
5.Packaging
