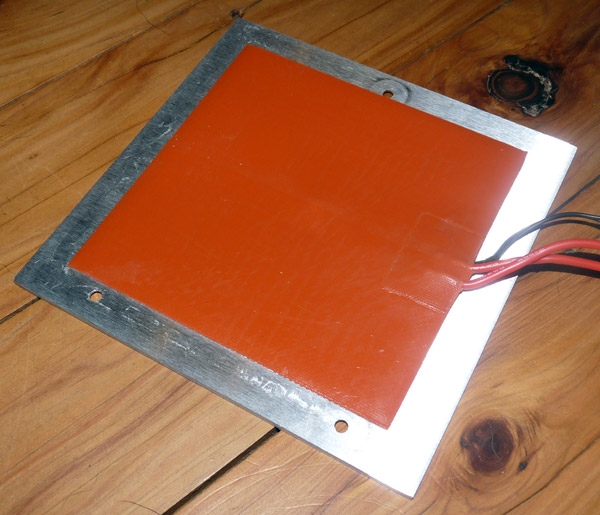

3D printer heater bed
24v Silicone Heater 3D Printer Heating Mat
sort：XD-H-25This product has been viewed
Sort：XD-H-25
Welcome to call us
alirubber.com@163.com
| Size(mm) | Voltage(V) | Wattage(W) | Accessories |
| 150*150 | 12V | 100W | Adhesive, thermistor |
| 160*160 | 12V | 90W | Adhesive, thermistor |
| 200*200 | 12V/24V | 150W | Adhesive, thermistor |
| 300*300 | 12V/24V | 270W | Adhesive, thermistor |
| 340*370 | 24V | 250W | Adhesive, thermistor |
Silicone Rubber Heater For 3D Printer
| silicone rubber heater | |
Dimension | Dimensions on request | |
Thickness | 1.5mm | |
Heating element | Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core | Nickel-Chromium or a Copper-Nickel resistance wire |
Voltage | Any voltage on request | |
Output | Up to 5KW/M2 | |
Tolerance | ±10% on resistance | |
Max surface temperature | 200°C | |
Min exposure temperature | -60°C | |
Features:
(1) Heating fast and long time span.
(2) Flexible and customization, thinness and lightness
(3) Waterproof and non-toxic, odourless
(4) Easy to use and operate.
(5) High thermal conversion efficiency
(6) Can be stick to the heated (have adhesive)

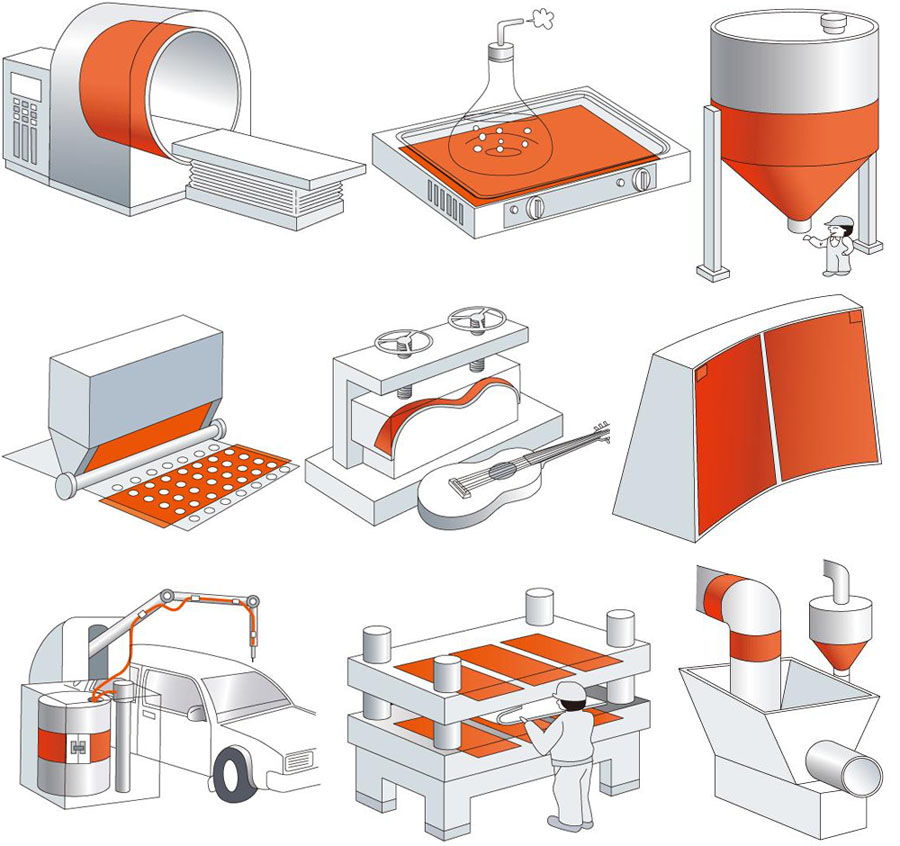

Applications:
- Freeze protection and condensation prevention for many types of instrumentation and equipment.
- Medical equipment such as blood analyzers and test tube heaters.
- Computer peripherals such as laser printers.
- Curing of plastic laminates.
- Photo processing equipment.
- Semiconductor processing equipment.
- Thermal transfer equipment
- Drums and other vessels and viscosity control and asphalt storage.
3M
Integrated Thermistor Beta Value 3950K
Silicone Drum Heater
Description and volume | Drum heaters:200L | Drum heaters:20L | Drum heaters:200L |
Size | 250*1740*1.5mm | 200*860*1.5mm | 125*1740*1.5mm |
Voltage and power | 220V 2000W | 220V 800W | 220V 1000W |
Temperature Adjustment range | 30~150°C | 30~150°C | 30~150°C |
Diameter | About 590mm | About 300mm | About 590mm |
Weight | 1.8K | 1.2K | 1.3K |
