Polyimide heater

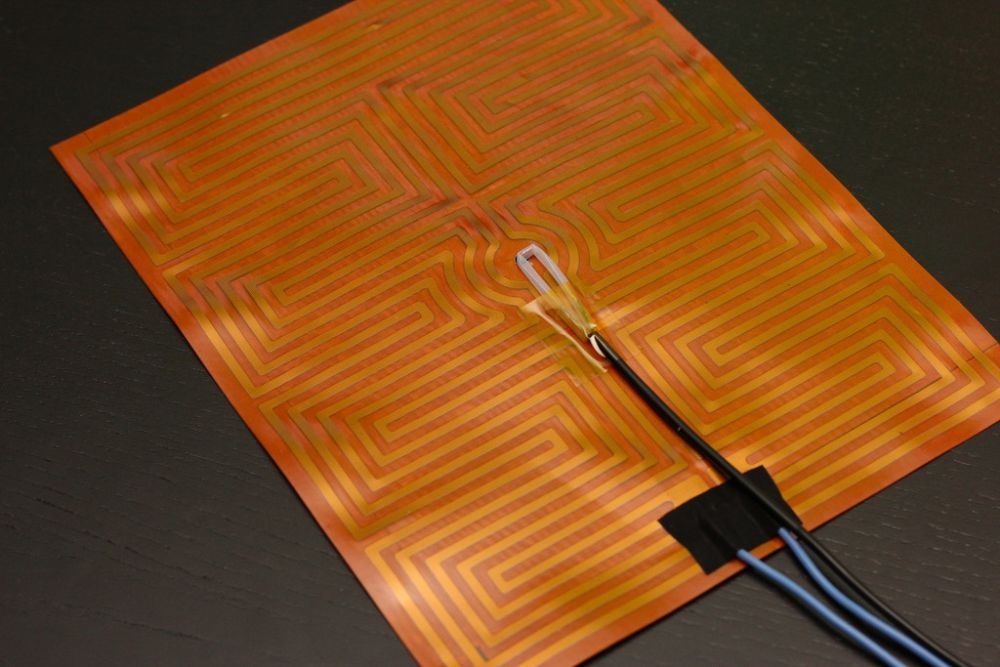

Customize 2014 Hot Sell 3D Printer Kapton Heater 260x290mm 12v 145w
sort：XD-K-05This product has been viewed
Sort：XD-K-05
Welcome to call us
alirubber.com@163.com
Specifications:
Structure: | Heating element(etched foil) laminated between two layers of kapton film |
| Insulation Material: | Polyimide (Kapton™) film |
| Heating Elements: | Etched Metal Foil |
| Supply Voltage: | 1.5V-380V |
| Max. Operating Temp.: | 200 Deg C or 392 Deg F |
| Min. Element Temp.: | -200 Deq C or -328 Deg F |
| Max.Power Density: | 3W/cm2 |
| Standard Thickness: | 0.15-0.3 mm |
| Minimum bend radius: | 0.08 mm |
| Thermal Protection & Control: | Surface mount thermal fuse, thermostat, thermistor and PT100 |
| Power Leads: | High temperature PTFE or Silicone insulation leads |
Features:
1. lightweight, flexible, Designed according to actual shape and dimension
2. Excellent Anti-Chemical Corrosion property
3. The life is 10 times longer than traditional heater strip.
4. High precision of watt control.within 7%.
5. fast efficient thermal transfer
Application:
- Hair rollers ,Hair straightener,massor household appliances
- Shoes,clothes,gloves,hand warmer
- Medical diagnostic instruments Heat sample trays, cuvettes, reagent bottles, etc.
- Warm satellite component
- Protect aircraft electronic and mechanical devices against cold at high altitudes
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as card readers or LCDs
- Maintain constant temperature in analytic test equipment
Advantages:
1.simple structure
2.long-time usage
3.high efficient heater exchange
4.it could easy to bent into many kinds of shape
5.good insulation could withstand high voltage
Resistance testing :
Kapton heater with 3M Adhesive
