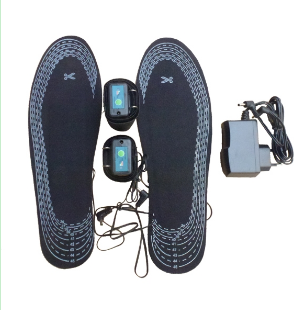

built-in lithium electricity heating insoles

Rechargeable electric insoles is my company to research and development, production, advanced electric products with own intellectual property rights.Insoles can be used repeatedly charging, and design science, easy to use.Switched on automatically when wearing, take off their shoes when the power, size and size can be according to the needs of the user and clipping.
Role and description:
1, the far infrared radiation, insoles directly ACTS on the nerves at the end of the toes slightly the greatest concentration of the human body, make human body in the cold, dark time can enjoy the sunshine and comfortable heating effect.
2, because of the special material and the product has to keep warm the cold, deodorization, absorbent care ventilation can absorb toxins, inhibit bacteria, activate cells, promote blood circulation, burn fat, so as to achieve the effect of fitness, beauty, for painful and inflammatory bowel disease and various kinds of beriberi good health care physical therapy efficacy.
3, good heat conduction heat and uniform soft is crooked deformation, acid and alkali resistant temperature fever lasting, shockproof, moisture in absolutely safe to use.
4, high power environmental protection intelligent battery, after a full charge, according to the requirements of the clients configuration, can make its constant temperature fever for 4 to 15 hours, normal for 5 to 10 hours, advanced heating technology, can make the shoes inside temperature always stay between 35 ° - 50 °.
5, simple and convenient operation, every time after the fever, original adapter for its charge are available, and don't need to heat, can be allocated to cut off the power supply plug, do not feel heat, can be more than a few times, turning on the power supply in case of poor contact circuit.
6, 3.7 V voltage less than the safety voltage value of the human body, so please rest assured consumers to use, after purchase, please charge the battery when not in use, store in a safe place, not used for three months, please continue to recharge, protect battery so that the next time you use not battery was destroyed.
Electrical specifications
Voltage: 3.7 V
Capacity: 800 mAh - 1100 mAh (men's) thickness is 10 mm, 800 mAh (lady's thickness is 10 mm)
Charging voltage: 4.2 + / - 0.05 V
The overcharge protection voltage: 4.30 V
Put protection voltage: 2.50 V
Charging current: 0.4-0.5 - A single;
The working current: < 420 ma
Standby current: < 5 ua;
Output power: 1.5 W MAX;
The power output efficiency: 98% or higher
The insole surface temperature and the time at work
Rechargeable repeated use of febrile insoles, stepped on the plug, walk, lift the foot, and take off their shoes when the power, the heating temperature of the insoles about 42 ℃, a charge can use 5 hours or so.
Electric heating charging insoles
The built-in lithium battery;Need to match special 4.2 V / 1.0 A two line lithium battery charging adapter.Required adapter output voltage constant voltage of 4.2 V;Constant current charging 0.5 A single output current;Requires constant current, constant voltage charging.Charging as long as the charging adapter output two lines respectively in heating insoles at the bottom of the DC adapter, LED display at this time as the red;After fully charged, the LED turn into green.
Matters needing attention
Electric heating insoles are electronic products, no fortification water facilities, therefore cannot be used for washing.To be clean, as long as the brush with a soft touch water to dry after cleaning, suggest 1 Zhou Qingjie twice.
size
Man: 10 mm (thickness) x 90 mm (width) x 285 mm (length)
Ladies: 10 mm (thickness) x 90 mm (width) x 260 mm (length)

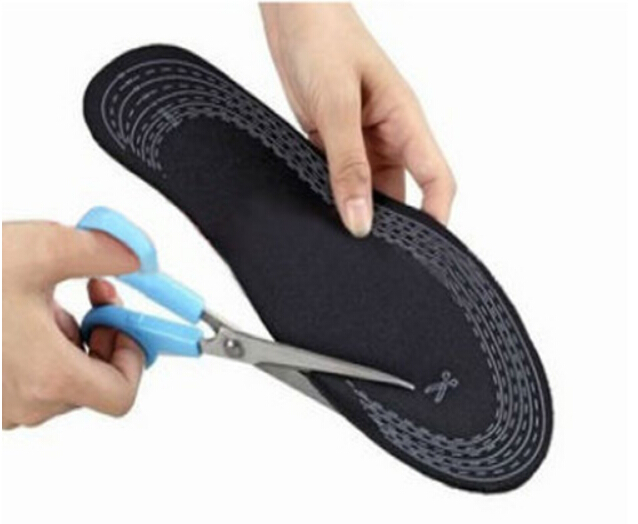

The insole size according to the size of individual cutting
