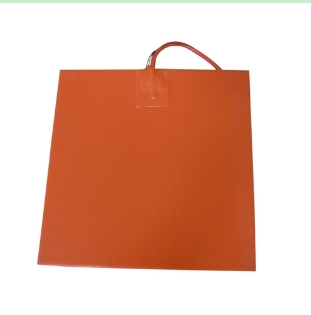

The silicone fever piece

The product mainly by nickel-chromium alloy heating wire and the silicone heat insulating cloth.It quick heating, temperature uniformity, high thermal efficiency, high strength, easy to use, safe life for four years, not easy ageing.
Often use 0.4 ~ 0.4 W/cm2 the scope of the best.However, because according to the different heating installation and temperature regulation may change, so please contact our company in selection.
Technical parameters
1, insulation materials the highest heat resistance: 250 ℃
2, the highest use temperature: 250 ℃
3, insulation resistance: Ω 5 M or higher
4, compression strength: 1500 v / 5 s
5, power deviation: plus or minus 8%
Special order goods specifications


standard
High temperature type


Continuous temperature
150 ℃
250 ℃


The highest temperature
250 ℃
280 ℃


size
The biggest
The width of 1200 mm x 10000 mm


The minimum
20 mm x 20 mm width


The thickness of the
Regular 1.5 mm (the most thin 0.8 mm, 4.5 mm thick)


The length of the lead
Standard 500 mm


note
On the surface of silicone rubber
On the surface of glass fiber cloth







Moistureproof specifications: face plate, simple moistureproof, for a long time in the water or cannot be used at the frosting.
