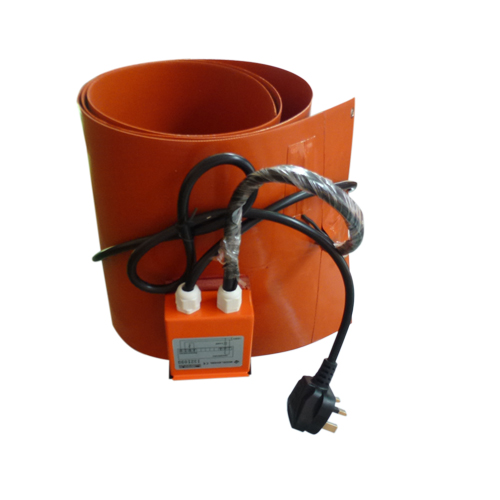

Silicone drum heater

Digital display oil heater

sort:xd-d-01
This product has been viewed
Sort:xd-d-01
Welcome to call us
alirubber.com@163.com
Product Details

Product introduction:
Silicone oil heater can be used in pipes, tanks, cabinet put oneself in another's position, heating and heat preservation box.Digital display can display temperature, easy to manipulate.

Structure performance:
1. The product heating element the nickel chromium alloy wire, heat block, thermal efficiency is high, long service life.
2. Moistureproof silicone rubber with non-alkali glass fiber double insulation, make the heater insulation performance is more reliable.
3. Aluminum plate auxiliary cooling, raise the heat efficiency of heater, and extend its service life.
4. Easy installation.;Dielectric strength: rated voltage: 220 v, 2000 v/min insulation resistance > 50 m Ω insulating material (silicone rubber) heat resistance: - 60 ℃, + 250 ℃.

specification
Product size: 250 * 1740 * 1.5 mm voltage: 220 v power 2000 w

Directions for use:
1: according to the regulation of the power plug.
2: one end of the heater with three spring (or silk) respectively on the three on the other side of the gasket.
3, digital display temperature control: 30 ~ 200 degrees.Adjustable temperature display

Note:
1: be sure to keep in mind not wrong power supply, the proper use of voltage.
2: the best heating temperature 50-180 ℃, do not use high temperature, high temperature will affect the service life.
3: the surface of the heater need to keep dry and clean.Can't have water for a long time, oil, or corrosive substances, easy to cause short circuit.
4: it is strictly prohibited in the inflammable and explosive gas or workshop occasions to use!
