Silicone rubber heater

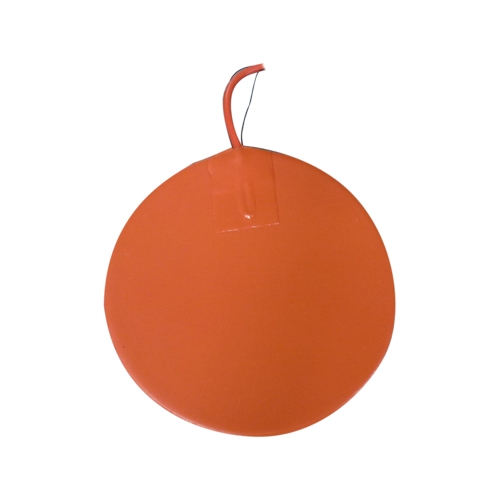

Circular silicone rubber electric heater
sort：xd-h-25This product has been viewed
Sort：xd-h-25
Welcome to call us
alirubber.com@163.com
Our company production of silicone heating is to use high temperature resistant, high thermal conductivity, insulation performance is strong, good silicone rubber and also high temperature resistant fiber reinforced materials as raw materials, by the two sheets of glass fiber cloth and the double silica also of silica glass fiber cloth.Because it is thin sheet products (standard thickness of 1.5 mm) it has good flexibility, can be completely close contact with heated object.
|
Temperature Rating |
400°F(204°C)maximum operating |
|
Size/Shape Limitations |
Maximum width of 48 inches, no maximum length |
|
Thickness |
~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply) |
|
Voltage |
Any AC or DC |
|
Wattage |
Customer specified(Normal maximum of 5 watts of 5 watts per square inch) |
|
Power lead wire |
Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire |
|
Attachment |
Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat) |
|
Description |
1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility. 2. It can improve heat transfer, accelerate warming and decrease power under the process of operation. 3. They are heating fast and thermal conversion efficiency high. |
|
Features: (1) Heating fast and long time using (2) Flexible and customization (3) Waterproof and non-toxic(Waterproof grad:IP68) Before purchasing, Please confirm the size first ( Iength*wide*thickness) | |
- Heating element has two types
- One of types is nickel-chromium or copper
- Resistance is then being placed between two layers of silicone impregnated glass cloth
- Heating mats are very robust, but at the same time very flexible
- Silicone heating mats are manufactured on request and their dimensions are consequently adapted to any specific requirements
- Mounting can be done by the mean of eyelets, hooks or any other type of fastener
- Backside of the heating mat can be supplied with a self-adhesive surface
- Heating fast and long lasting
- Flexible and customization, thinness and lightness
- Waterproof and non-toxic, odorless
- Easy to use and operate
- High thermal conversion efficiency
- Good insulation property
- Can prefect contact with heated
- Can be stick to heated (have adhesive)
- Freeze protection and condensation prevention for various types of instrumentation and equipment
- Medical equipment such as blood analyzers and test tube heaters
- Computer peripherals such as laser printers
- Curing of plastic laminates
- Photo processing equipment
- Semiconductor processing equipment
- Thermal transfer equipment
- Drums and other vessels and viscosity control and asphalt storage
- Any size, voltage, wattage can be customized
