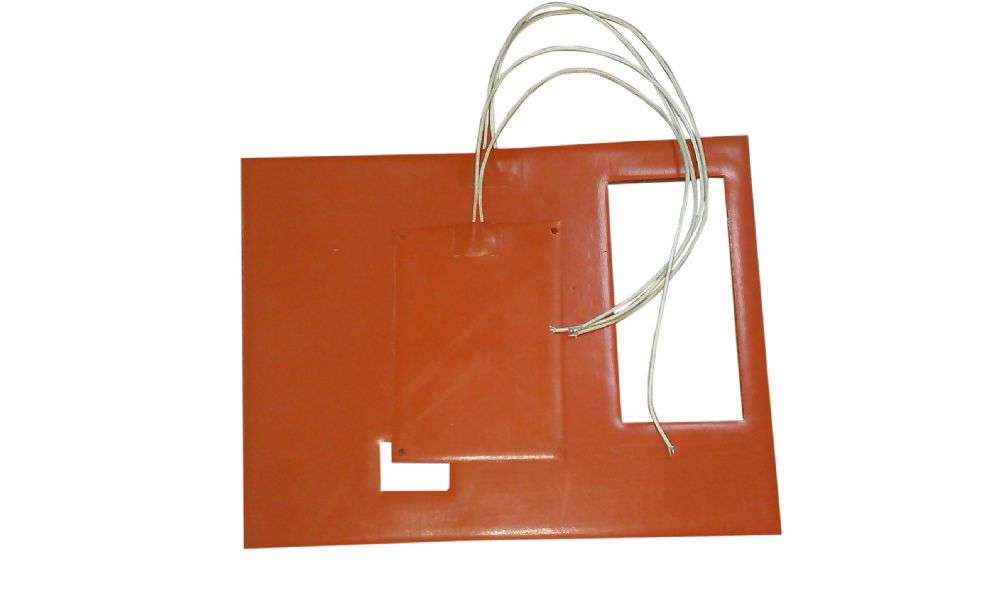

irregular shape silicone heater

1, silicone heating with traditional metal heater incomparable softness of thin planar heating element.
In glass fiber cloth, up and down two film clip into the silica gel after compaction of two thin slices of.
because is a thin sheet of products, thus has good heat transfer (standard 1.5 mm thick).
it has the softness, so heated objects can be completely close contact, such as surface of cylinder, etc.
General planar heating element for the carbon composition, and silicone rubber heater heating element for after arrangement of nickel-chromium alloy resistance wire, so can be at ease use.

2, the shape of a heater are free to production.
different from the average composition of carbon heater, silicone rubber heater is composed of nickel alloy resistor body shape can meet the shape of the heated object freely to circular, triangle, etc.
Who can in the short term (a) processing products.

3, can design according to product requirements.
This product can be used in various industries all kinds of equipment.(voltage, power can be customized according to customer's requirement)
because this product is a thin sheet, and is soft, used in other products can achieve lightweight, miniaturization.
Does this product to heat up fast;And could not be temperature control, temperature control is therefore required.

4, ordinary type, E type, MG can be under the condition of 200 ℃, semi-permanent use.
Adhesion, can with heated object.
Below 100 ℃ is..................Both sides of tape
100 ℃ ~ 150 ℃ below...............Silica gel (RTV)
Continuous at above 150 ℃, such as heating, it is recommended that the adhesion in my factory.
Low IDC silicone rubber heater USES
Barrels, pipe insulation, oil drums antifreeze, pump, motor, generator, well protected against dampness, paper, plastic, hot films, film machine, pharmaceutical machine, glue hardening, food vending machines, insulation board dental machine, beauty, hospital inspection units, mobile food cart, physical and chemical equipment, hot plate, cold area measuring equipment of antifreeze, insulation, metal welding preheating, heat shrinkable tube heating.Pan type antenna antifreeze, suit processing, composite plate processing, missile aviation equipment heat preservation, heating room, burner gasification plant, cement antifreeze.
