Silicone rubber heater

12 Volt Heating Element

sort:XD-H-84
This product has been viewed
Sort:XD-H-84
Welcome to call us
alirubber.com@163.com
Product Details

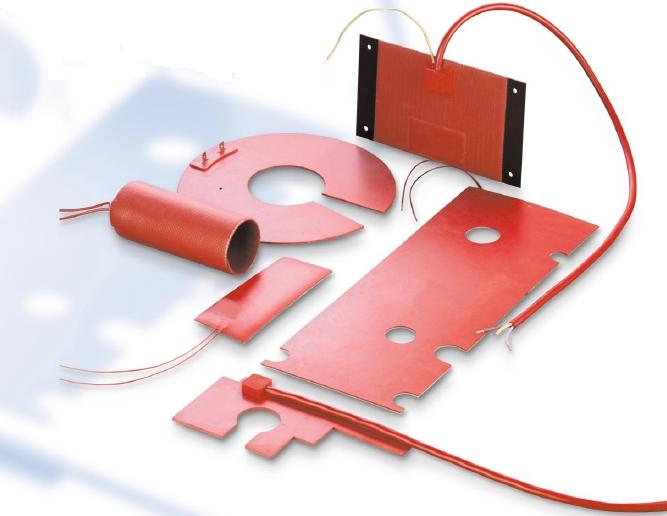

silicone rubber heater



Dimension

Dimensions on request

Thickness

1.5mm

Heating element

Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core

Nickel-Chromium or a Copper-Nickel resistance wire

Voltage

Any voltage on request

Output

Up to 5KW/M2

Tolerance

±10% on resistance

Max surface temperature

200°C

Min exposure temperature

-60°C

Features:

(1) Heating fast and long time span.

(2) Flexible and customization, thinness and lightness

(3) Waterproof and non-toxic, odourless

(4) Easy to use and operate.

(5) High thermal conversion efficiency


(6) Can be stick to the heated (have adhesive)

Applications:

  • Freeze protection and condensation prevention for many types of instrumentation and equipment.
  • Medical equipment such as blood analyzers and test tube heaters.
  • Computer peripherals such as laser printers.
  • Curing of plastic laminates.
  • Photo processing equipment.
  • Semiconductor processing equipment.
  • Thermal transfer equipment
  • Drums and other vessels and viscosity control and asphalt storage.

Silicone Heater Pad/Mat, Car Fuel Filter Heater 12V 200W Silicone Heater Pad/Mat, Car Fuel Filter Heater 12V 200W3M

         Different size of silicone heater bed for 3d printer ,if you can't find suitable size ,please let me know. Also can supply 400x400mm ,500x500mm ,600x600mm big size heater bed .

Size(mm)Voltage(V)Wattage(W)Accessories
150*15012V100WAdhesive, thermistor
160*16012V90WAdhesive, thermistor
200*20012V/24V150WAdhesive, thermistor
300*30012V/24V270WAdhesive, thermistor
340*37024V250WAdhesive, thermistor

Silicone Rubber Heater For 3D Printer

Silicone Heater Pad/Mat, Car Fuel Filter Heater 12V 200W      Silicone Heater Pad/Mat, Car Fuel Filter Heater 12V 200W

Integrated Thermistor Beta Value 3950K

Silicone Heater Pad/Mat, Car Fuel Filter Heater 12V 200W

Silicone Drum Heater




Description and volume

Drum heaters:200L

Drum heaters:20L

Drum heaters:200L

Size

250*1740*1.5mm

200*860*1.5mm

125*1740*1.5mm

Voltage and power

220V  2000W

220V  800W

220V  1000W

Temperature Adjustment range

30~150°C

30~150°C

30~150°C

Diameter

About 590mm

About 300mm

About 590mm

Weight

1.8K

1.2K

1.3K
