Silicone rubber heater

12v Electric Water Heater

sort:XD-L-135
This product has been viewed
Sort:XD-L-135
Welcome to call us
alirubber.com@163.com
Product Details

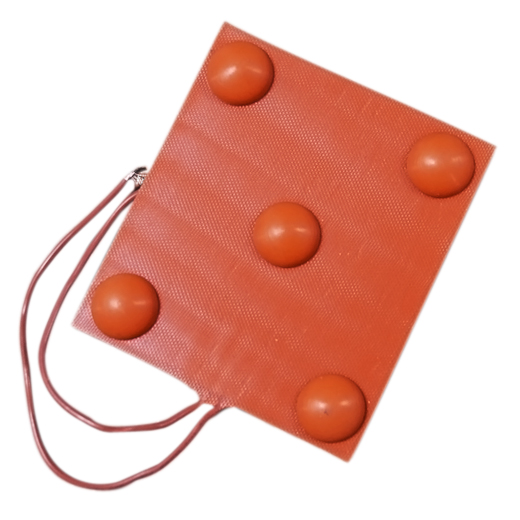

What is a Silicone Flexible Heat Blanket?

Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.

Model No.Length & Width inches(mm)VoltageWattageMountings
Alixd-H-16 × 6 (152.4  × 152.4mm)1250Adhesive
Alixd-H-28 × 8 (203.2  ×  203.2mm)12165Adhesive, Thermistor 100K
Alixd-H-312  × 12 (304.8 × 304.8mm )24350Adhesive, Thermistor 100K
Alixd-H-4Dia 6.3(160mm)121203M Adhesive, Thermistor 100K
Alixd-H-539.37  × 39.37(1000 × 1000mm)1104000Digital Temperature Controller
Alixd-H-66.1  × 39.37(155 × 1000mm)220650Plug
Alixd-H-735.4 × 70.87(900 × 1800mm)3807000Digital Temperature Controller
Alixd-H-839.37 × 118.11(1000 × 3000mm)41513000Digital Temperature Controller Box



If you can't find your size in the above form, please contact with me. The max width is 1200mm, and no limit for length.



Multi Zone Heaters and Three Phase






Due to the flexibility in circuit design of silicone rubber heaters, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.





Drum Heaters 5G(20L)/55G(200L):











Main applications:

1) Thermal transfer equipment;

2)  Composite bonding processes

3)  Airplane engine heaters and aerospace industry

4) Drums and other vessels and viscosity control and asphalt storage

5) Curing of plastic laminates

6) Computer peripherals such as laser printers, duplicating machines




 Spare Parts for silicone heater

 Thermistor 100K:



 Digital Temperature Controller:

.jpg

Customize shape and size silicone heaters:




Production process:


                                                                       .jpg

Certificate:

                                     CE .jpg
