Polyimide heater

Location:Home > Products > Polyimide heater

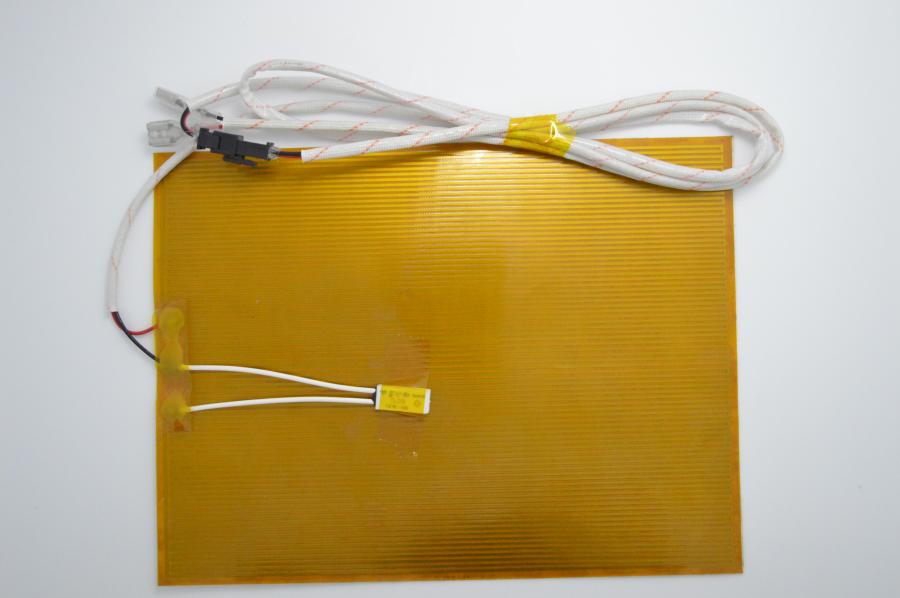

Polyimide Thermofoil Flexible Heaters

sort:XD-K-63
This product has been viewed
Sort:XD-K-63
Welcome to call us
alirubber.com@163.com
Product Details

Specifications:


Structure:

 Heating element(etched foil) laminated between two layers of kapton film
Insulation Material:

Polyimide (Kapton™) film

Heating Elements: Etched Metal Foil
Supply Voltage:  1.5V-380V
Max. Operating Temp.:200 Deg C or 392 Deg F
Min. Element Temp.:-200 Deq C or -328 Deg F
 Max.Power Density: 3W/cm2
 Standard Thickness: 0.15-0.3 mm
 Minimum bend radius: 0.08 mm
 Thermal Protection & Control: Surface mount thermal fuse, thermostat, thermistor and PT100
 Power Leads: High temperature PTFE or Silicone insulation leads


    Features:


1.   lightweight, flexible, Designed according to actual shape and dimension


2.   Excellent Anti-Chemical Corrosion property


3.   The life is 10 times longer than traditional heater strip.


4.    High precision of watt control.within 7%.


5.   fast efficient thermal transfer



Application:


  • Hair rollers ,Hair straightener,massor household appliances
  • Shoes,clothes,gloves,hand warmer
  • Medical diagnostic instruments Heat sample trays, cuvettes, reagent bottles, etc.
  • Warm satellite component
  • Protect aircraft electronic and mechanical devices against cold at high altitudes
  • Stabilize optoelectronic components
  • Test or simulate integrated circuits
  • Enable cold weather operation of outdoor electronics such as card readers or LCDs
  • Maintain constant temperature in analytic test equipment

 Advantages:


      1.simple structure


      2.long-time usage


      3.high efficient heater exchange


      4.it could easy to bent into many kinds of shape


      5.good insulation could withstand high voltage



      Resistance testing :





Kapton heater with 3M Adhesive
