Silicone rubber heater

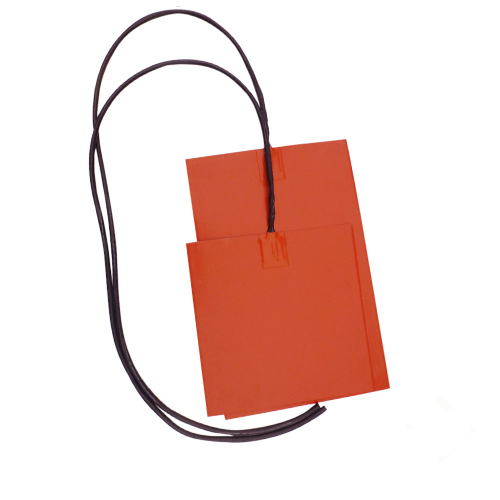

Custom Silicone Rubber Hot Pad 12V Manufacturer

sort:XD-L-198
This product has been viewed
Sort:XD-L-198
Welcome to call us
alirubber.com@163.com
Product Details

What is a Silicone Flexible Heat Blanket?

Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then  vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.



            qu-bd-pad-01


Model No.Length & Width inches(mm)VoltageWattageMountings
Alixd-H-1× 6 (152.4  × 152.4mm)1250Adhesive
Alixd-H-28 × 8 (203.2  ×  203.2mm)12165Adhesive, Thermistor 100K
Alixd-H-312  × 12 (304.8 × 304.8mm )24350Adhesive, Thermistor 100K
Alixd-H-4Dia 6.3(160mm)121203M Adhesive, Thermistor 100K
Alixd-H-539.37  × 39.37(1000 × 1000mm)1104000Digital Temperature Controller
Alixd-H-66.1  × 39.37(155 × 1000mm)220650Plug
Alixd-H-735.4 × 70.87(900 × 1800mm)3807000Digital Temperature Controller
Alixd-H-839.37 × 118.11(1000 × 3000mm)41513000Digital Temperature Controller Box



If you can't find your size in the aboe form, please contact with me.

The max width is 1200mm, and no limit for length.





Technical Data:

ProductModel NO.MaterialHardness
Silicone Heater

XD-L-198

Orange High Temperature Silicone60±3
ShapeData
Size: mmRated VoltageCustomize
              _20130626140234Rated Wattage00.07-1/cm2
Static ResistanceCustomize
Max Temperature can bear250C
Max Used Temperature180-200C
Compressive Strength≥3KV
Insulation Resistance≥100MΩ
Tensile Strength≥8.0Mpa/M2
Elongation at Break≥4%
Length: CustomizeCable300mm(standard)Peel Strength≥2500N/M2
Width: CustomizeSpecification of the cableAWG22Compressive Stress>15kg/cm2
Thickness: 1.5mmColour of CableOrange or whiteHeating WireNickel-chromium wire
Parts3M AdhesiveThermostat(Dial/Digital)Thermistors



Drum Heaters:

Low Watt Density Electrical Resistance Heater
Models Available for 55, 30, 15, and 5 Gallon Drums
With or Without Adjustable Thermostat
Quick and Simple Installation
For Freeze Protection or Temperature Maintenance Applications




Dual Voltage, Zoning and Three Phase




Due to the flexibility in circuit design of silicone rubber heaters, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.





For 3D Printer:

656145075_502



Digital Temperature Controller:



.jpg



Customized shape and size silicone heaters:





-1

 Production process:



Certificate:



Application:
