3D printer heater bed
Big Size 3d Printer Heat Bed 600mmx600mm
sort：XD-H-150This product has been viewed
Sort：XD-H-150
Welcome to call us
alirubber.com@163.com
Different size of silicone heater bed for 3d printer ,if you can't find suitable size ,please let me know. Also can supply 400x400mm ,500x500mm ,600x600mm big size heater bed .
| Size(mm) | Voltage(V) | Wattage(W) | Accessories |
| 150*150 | 12V | 100W | Adhesive, thermistor |
| 160*160 | 12V | 90W | Adhesive, thermistor |
| 200*200 | 12V/24V | 150W | Adhesive, thermistor |
| 300*300 | 12V/24V | 270W | Adhesive, thermistor |
| 340*370 | 24V | 250W | Adhesive, thermistor |

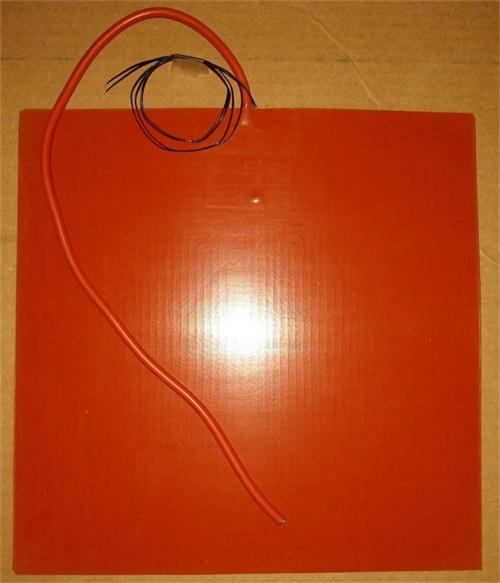

Silicone Rubber Heater For 3D Printer
|
|
silicone rubber heater |
|
|
Dimension |
Dimensions on request | |
|
Thickness |
1.5mm | |
|
Heating element |
Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core |
Nickel-Chromium or a Copper-Nickel resistance wire |
|
Voltage |
Any voltage on request | |
|
Output |
Up to 5KW/M2 | |
|
Tolerance |
±10% on resistance | |
|
Max surface temperature |
200°C | |
|
Min exposure temperature |
-60°C | |
Features:
(1) Heating fast and long time span.
(2) Flexible and customization, thinness and lightness
(3) Waterproof and non-toxic, odourless
(4) Easy to use and operate.
(5) High thermal conversion efficiency
(6) Can be stick to the heated (have adhesive)
Applications:
- Freeze protection and condensation prevention for many types of instrumentation and equipment.
- Medical equipment such as blood analyzers and test tube heaters.
- Computer peripherals such as laser printers.
- Curing of plastic laminates.
- Photo processing equipment.
- Semiconductor processing equipment.
- Thermal transfer equipment
- Drums and other vessels and viscosity control and asphalt storage.
3M
Integrated Thermistor Beta Value 3950K
Silicone Drum Heater
|
Description and volume |
Drum heaters:200L |
Drum heaters:20L |
Drum heaters:200L |
|
Size |
250*1740*1.5mm |
200*860*1.5mm |
125*1740*1.5mm |
|
Voltage and power |
220V 2000W |
220V 800W |
220V 1000W |
|
Temperature Adjustment range |
30~150°C |
30~150°C |
30~150°C |
|
Diameter |
About 590mm |
About 300mm |
About 590mm |
|
Weight |
1.8K |
1.2K |
1.3K |
